X-Ray Optics
X-ray optics, essential for manipulating x-ray beams, include components like beryllium windows, silicon mirrors, and diamond windows, each serving specific roles. Beryllium windows are ideal for maintaining vacuum conditions while allowing high-energy x-rays to pass due to their transparency and durability. Silicon mirrors provide precise reflection and focusing of x-rays, leveraging their smoothness and thermal stability. Diamond windows, with exceptional thermal conductivity and low x-ray absorption, handle high-intensity radiation, making them ideal for demanding applications like synchrotrons, which use these components for beamline focusing and material characterization.
Beryllium Windows

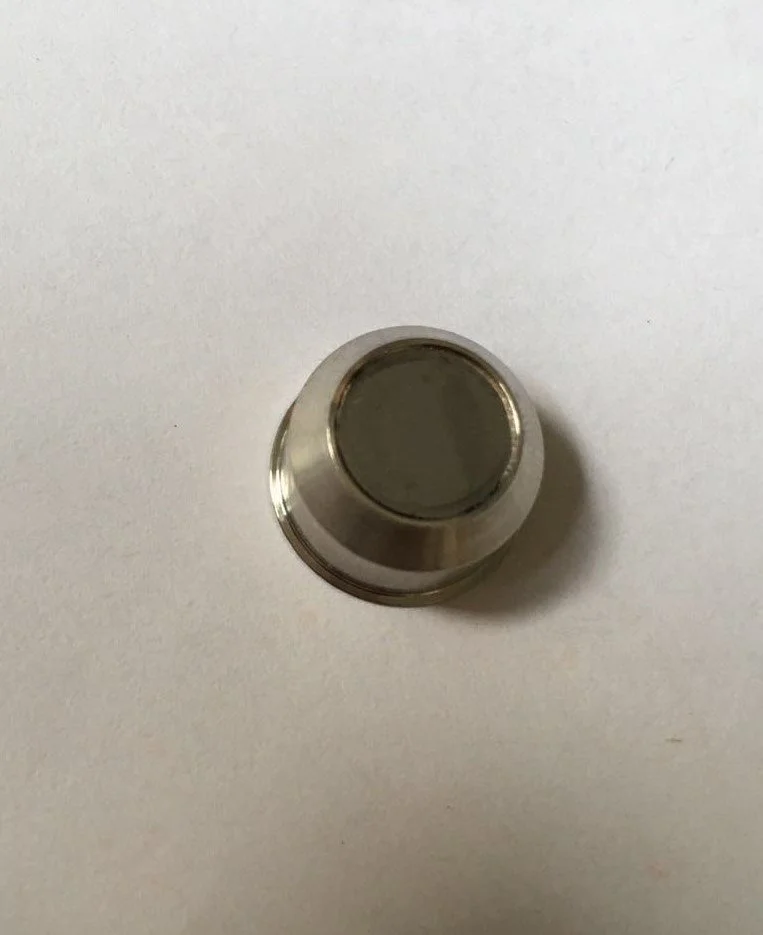

Beryllium Windows
Beryllium windows are lightweight, durable components used in X-ray equipment and spectroscopy, offering excellent X-ray transparency and mechanical strength. They are primarily composed of high-purity beryllium, which allows them to efficiently transmit X-rays while withstanding high pressures and temperatures. These windows are commonly applied in medical imaging, industrial CT scanners, and particle accelerators.
Their robustness and performance also make them suitable for use in synchrotrons and advanced scientific instruments, where precise X-ray control is critical.
Firebird Optics offers a standard 4.62” flange configuration but can make many different sizes on request depending on your application.
Technical Details for X-Ray Beryllium Windows:
Configuration: Beryllium/Conflat Brazement
Stock Beryllium size: 0.010” thick; 2.69” aperture
Purity of Beryllium: 99.0%
Leakage rate: 1.0x10-10 Pa.M3/s
Temperature resistance: 450ºC
Brazed Windows: Manufacturing and Applications
Beryllium windows are essential components in X-ray systems and advanced scientific instruments. These windows are designed to provide high X-ray transparency while maintaining mechanical durability, making them indispensable in fields such as medical imaging, industrial inspection, and particle physics. This article explores how brazed beryllium windows are manufactured and highlights their diverse applications.
Manufacturing of Beryllium Windows
1. Material Selection and Preparation
The manufacturing process begins with the selection of high-purity beryllium, a lightweight and rigid material known for its low atomic number and excellent X-ray transmission. The material is then processed into thin foils or wafers that balance transparency with structural integrity.
2. Brazing Process
Brazing involves joining beryllium to other materials, such as stainless steel or copper, to create a durable, leak-proof assembly. This process is performed in a high-vacuum or inert atmosphere to prevent oxidation. A specialized brazing alloy is applied, and the components are heated to a temperature that melts the alloy without compromising the beryllium structure. This creates a strong, hermetic seal essential for vacuum and high-pressure environments.
3. Quality Assurance
The completed windows undergo rigorous testing, including pressure, temperature, and X-ray transmission evaluations. This ensures that the windows meet the stringent requirements of their intended applications, such as durability under extreme conditions and minimal X-ray attenuation.
Applications of Beryllium Windows
1. Medical Imaging
In medical imaging, beryllium windows are integral to X-ray tubes, enabling efficient transmission of X-rays for diagnostic imaging. Their high transparency ensures clear imaging results while maintaining the integrity of the system under repeated use.
2. Industrial Inspection
Beryllium windows are widely used in industrial CT scanners and non-destructive testing equipment. They allow precise X-ray transmission for inspecting materials and components, such as aerospace parts, ensuring safety and quality in critical applications.
3. Scientific Research
In synchrotrons and particle accelerators, these windows facilitate the transmission of high-intensity X-ray beams. Their durability and precision make them ideal for experiments requiring controlled radiation environments, such as crystallography and materials science.
4. Space and Defense
Beryllium windows are used in space and defense technologies, where their lightweight and robust properties are crucial. They enable the development of advanced sensors and X-ray instruments for satellite and defense systems.
