Optical Prisms
Optical prisms are transparent objects made of glass or plastic that are used to refract, reflect, or disperse light. They are typically triangular in shape and have two flat surfaces called faces that are parallel to each other, and a third face that is angled relative to the other two faces.
When light passes through a prism, it is refracted or bent, causing it to separate into its component colors. This effect is called dispersion and is the basis for how prisms are used in devices such as spectrometers and cameras.
Prisms can also be used to reflect light, such as in binoculars or periscopes. In these devices, the prism is coated with a reflective material such as aluminum or silver, which allows light to be redirected without passing through the prism.

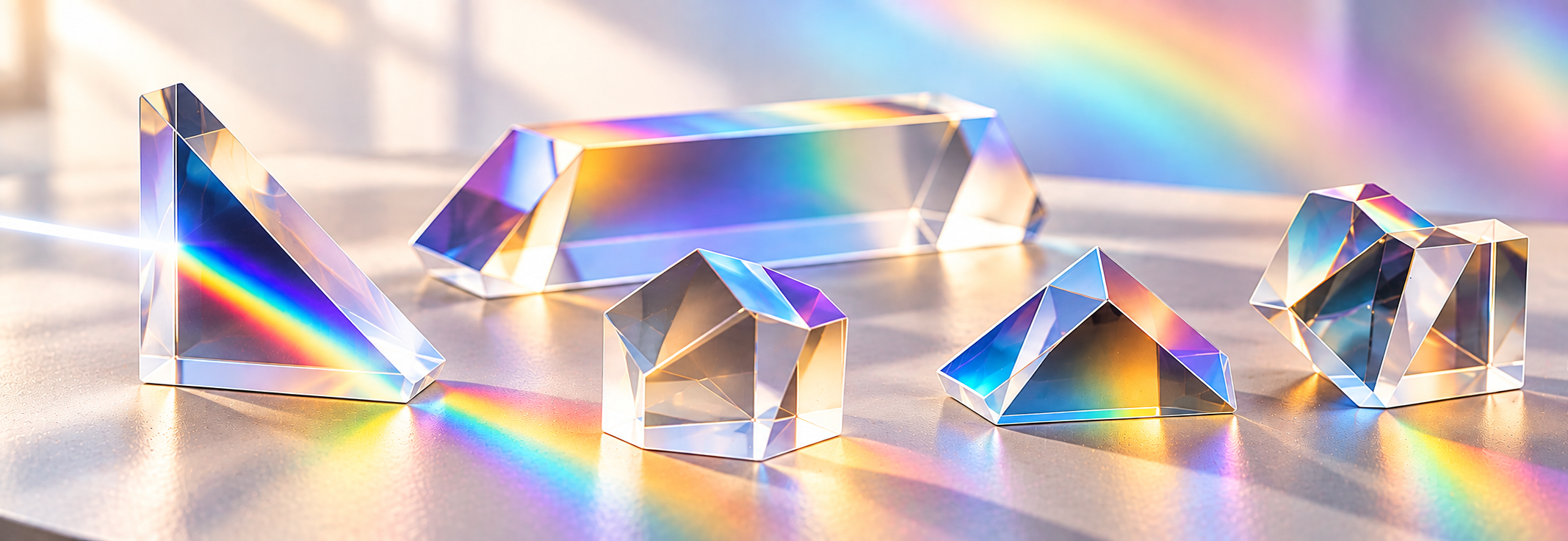

Optical prisms come in a variety of shapes and sizes and can be used for many different applications, including scientific research, photography, and laser technology.
Dove Prisms
Dove Prisms
A dove is a type of optical prism that has is shaped from a truncated right angle prism, and is typically used to invert an image 180º.
Firebird Optics provides Dove Prisms in N-BK7 and several other materials and coating configurations upon request.
What is a Dove Prism?
A dove prism is a type of optical prism that is shaped like a wedge, with two equal and perpendicular faces that are tilted at a specific angle. This prism is often made of glass or quartz, and is used to invert an image or beam of light.
When light enters a dove prism, it is refracted or bent as it passes through the first face, and then again as it passes through the second face. However, the angle of refraction is not the same on both sides, so the light is bent in a way that causes it to be inverted or rotated by a specific angle.
Dove prisms are commonly used in optical systems such as cameras, telescopes, and microscopes to rotate or invert an image, or to measure the polarization of light. They are also used in laser applications, such as in beam steering and as retroreflectors.
Image Rotations of a Dove Prism
The Dove prism is a special kind of prism that can rotate an image that passes through it. The amount of rotation depends on the angle between the incoming light and the prism's shape. If the light enters the prism at a 90-degree angle to the apex of the prism, there will be no rotation. But if the light is angled in any other direction, the image will rotate.
This rotation happens because of a principle called total internal reflection. When the light enters the prism, it bends towards the base of the prism. Then, when it hits the hypotenuse face of the prism at an angle greater than the critical angle of total internal reflection, it reflects off that surface and continues to travel along the prism, but in a slightly different direction.
The amount of rotation can also change depending on the color of the light passing through the prism. This can cause chromatic aberration, which means that different colors of light are affected differently.
Dove prisms are used in many different applications where image rotation is needed, such as in scientific research or medical imaging. They can also be used to rotate the polarization of laser beams. However, it's important to note that at higher angles of incidence, the Dove prism can introduce some aberrations that need to be carefully considered in any application where high precision is important.
