Type GC-10SS Stainless Steel FTIR Gas Cell (Lightpath: 100mm)


Type GC-10SS Stainless Steel FTIR Gas Cell (Lightpath: 100mm)

from $1,805.00

The GC-10SS is Firebird Optics’ solution for FTIR analysis of gas samples. This is most helpful in qualitative analysis applications where one or more gases are present in concentrations of more than 5%.

This cell can be used in high pressure and temperature applications where glass/quartz spectroscopy samples are impractical. If you are interested in Optical Glass and UV Quartz versions of this cell, check out the Type 34 from our friends at FireflySci. They rock.

This assembly can be fitted with Firebird Optics high grade optical windows and snapped into any commercial FTIR spectrophotometer.

Can either be ordered as an empty assembly or with a pair of 38x6mm undrilled optical windows.

There is currently a leadtime of 2-3 weeks.

Optical Window Material:
Quantity:
Add To Cart

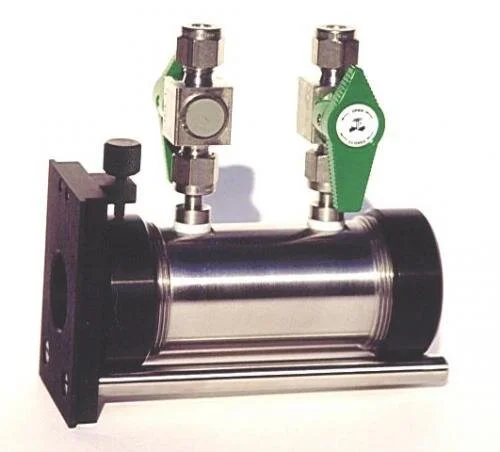

Stainless Steel Gas Cell for FTIR

CAD Drawing:

  • Gas cell is constructed in 316 S.S

  • Viton O-Rings are used at each end to seal windows with anodised aluminium caps

  • Two Nupro Plug Valves are connected via S.S> Tubes to the body of the gas cell.

  • Window size: 38x6mm, Aperture 25mm diameter, 5mm thick

  • Inner Length of cell: 100mm; full outer length: 122mm.

  • Volume 50cc

  • Valve Outlet Connection 1/4" (6.35mm) Swagelok.

  • Two 1/4"(6.35mm) SS. Tubes with Rifle ends are supplied for connecting with Laboratory Tubing

  • Slide plate holder with Captive Screw to lock Cell on holder.

  • Gas Cell is supplied with Slide Plate Holder in Presentation Case.

  • Cell is rated for 21ºC (70ºF) and 3000psig (206bar)

Chemical Compatibility
