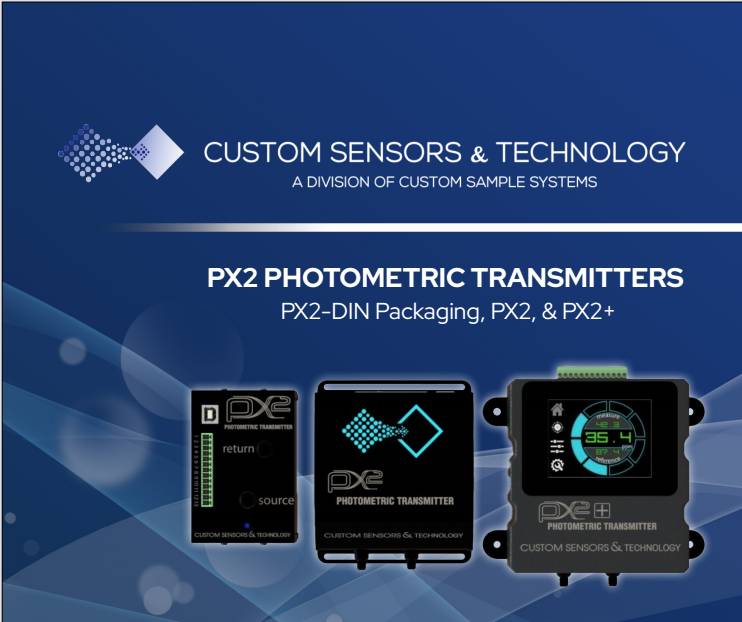

PX2 Fiber Optic Photometer


PX2 Fiber Optic Photometer

$8,285.00

The PX2 Photometer was designed for dynamic sensitivity and ease of use. The PX2 accommodates a combination of measurement methods, light sources, detectors, and several digital and analog communication options to support numerous single or dual wavelength applications. An indicator LED alerts the user to changes in the unit’s operating status. The optional software package allows the user to calibrate for their particular samples.

The PX2 can be packaged for GP, C1D1, or C1D2 electrical area classifications.

Measurement Method:
Light Source:
Detector:
Wavelength:
Quantity:
Add To Cart

Product Specifications:

  • Wavelength Range: 185-2600nm

  • Accuracy: ±1% of full scale or better

  • Repeatability: ±0.5% of full scale or better

  • Light Source: LED, Flash Lamp

  • Detector: PMT, Si Photodiode, InGaAs Photodiode

  • Alarms: Contact Closure (60 VDC, 0.75 A max.)

  • Analog Output: 4-20 mA, isolated

  • Analog Loop Resistance: 500 ohms @ 24 VDC

  • Digital Output: USB-B, RS-485 (Modbus)

  • Power Consumption: 8.5 watts (max.)

  • Power Requirements: 24 VDC nominal (12-48 VDC)

  • Enclosure Material: Anodized Aluminum

  • UV-Vis Operating Temperature: 41-122 F (5-55 C)

  • NIR Operating Temperature: 4-90 F (-20-32 C)

  • Size: 4” x 4” x 2.5”

  • Weight: 1.5 lbs.

Accessories to be used with PX2:

Measurement Methods

  • Absorbance

  • Fluorescence

  • Reflectance
